4x400G Silicon Photonic Chip (1.6T-DR4)

Data Centre 800G-DR4/FR4 Heterogeneous Integration Silicon Photonics, Data Centre 1.6T-DR8/FR8 Heterogeneous Integration Silicon Photonics, Silicon Integrated High Speed Electro-Optical Analogue Modulator Chip, etc.


Description：

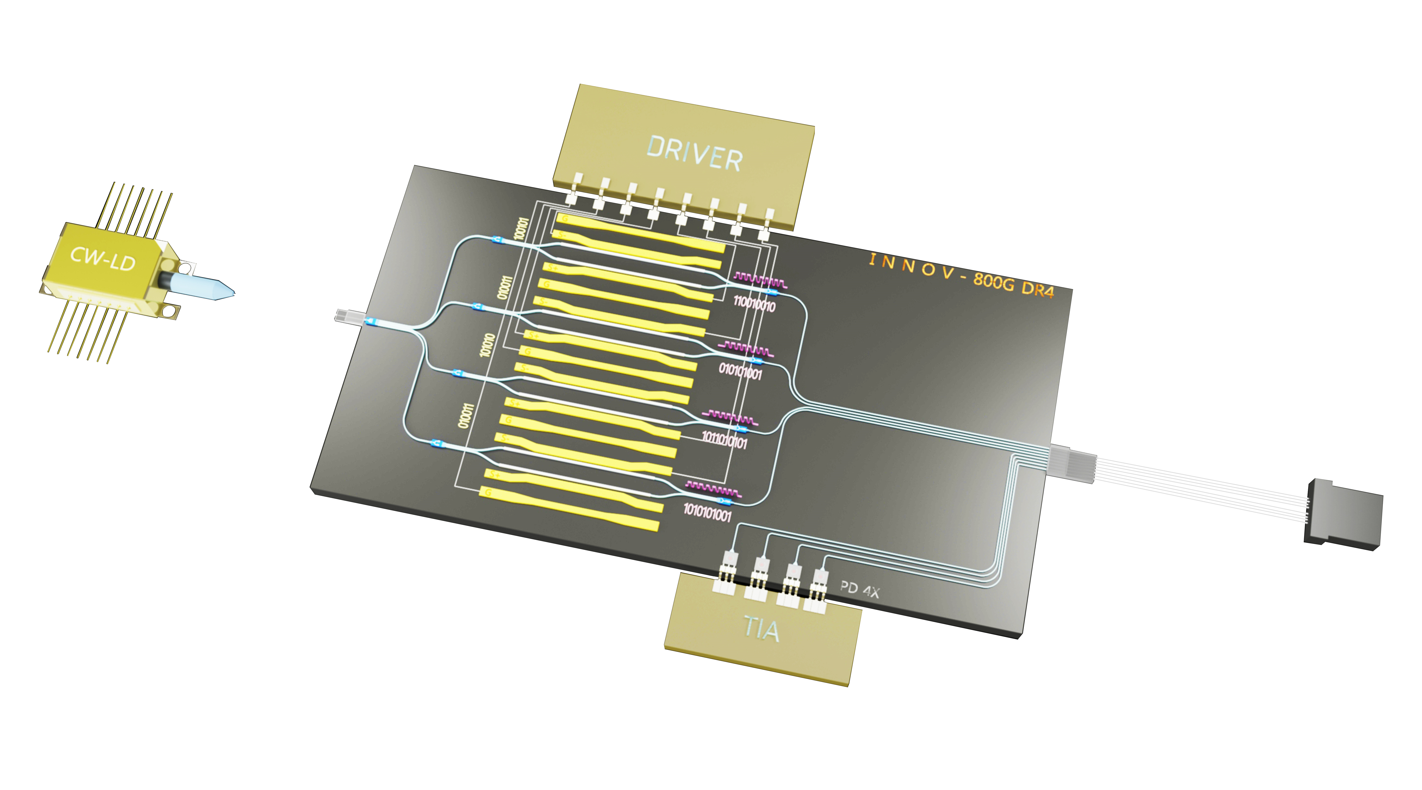

The 4 × 400 Gbps silicon photonic heterogeneous-integrated differential modulator chip integrating four channels of high-performance differential Mach–Zehnder modulators (MZMs) and multiple passive components. It features a 1-input/4-output optical configuration, in which one optical input signal is routed to four high-bandwidth modulators and output through four optical ports. Each high-bandwidth modulator is equipped with a dedicated heater for operating-point adjustment.


Features:

  • 4-channel high-performance MZM silicon photonic heterogeneous-integrated modulator

  • Operating wavelength range: 1310 ± 6.5 nm

  • High electro-optic bandwidth

  • Low drive voltage

  • Low insertion loss

  • Edge-coupled configuration

  • Customizable chip dimensions


Parameter：

Electro-Optic Bandwidth 110 GHz
On-Chip Insertion Loss 10 dB
Single-Pass Coupling Loss 2 dB
Static Extinction Ratio 25 dB
Dynamic Extinction Ratio 4 dB
Heater Half-Wave Voltage (Vπ) 2 V
Driver Drive Voltage (Vpp) 3 V
